Westinghouse portable steam engines
The transition to mechanized power from animal power
Westinghouse portable steam engines hold a prominent place in late 19th-century agricultural and industrial history. Manufactured primarily by G. Westinghouse & Co. in Schenectady, New York—a business established by George Westinghouse Sr. (father of the famous inventor and industrialist George Westinghouse Jr.)—these engines played a vital role in transitioning farms from animal power to mechanized power.
Key Technical Features & Design
Unlike many horizontal boilers of the era, the Westinghouse portable steam engine was distinguished by its vertical configuration and lightweight design:
Monoblock Engine Casting: The cylinder, steam chest, crosshead guide, and crankshaft bearing housing were cast together in a single solid frame. This ensured precise mechanical alignment and added structural stability against heavy belt pull.
Low Center of Gravity: Mounted vertically on a four-wheel wagon frame, the engine had a short, quick stroke. This kept the center of gravity low, reducing the risk of rollover when towed across rough agricultural terrain.
Power Output: Built typically in 6, 10, and 15 horsepower variants.
Standard Outfitting: Delivered fully equipped with an adjustable flyball governor, pop safety valve, steam pressure gauge, direct-acting feedwater pump, exhaust blower, heater, and onboard tools.
Production & Practical Applications
Operational Period: Manufactured from the 1870s through 1917.
Primary Uses: Pulled by team horses from job to job, these engines provided stationary belt power to operate grain threshers, sawmills, corn shellers, feed grinders, and small shop machinery.
Traction vs. Portable: While Westinghouse later produced traction (self-propelled) steam engines, their portable vertical units remained popular for operations requiring lighter transport and reliable power output.

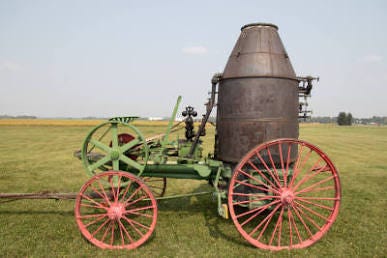

The Reynolds Museum in Wetaskiwin, Alberta, holds an 1885 Westinghouse 10 HP Portable Steam Engine in its historic agricultural machinery collection.
The 10 HP portable unit highlights the distinct engineering features of G. Westinghouse & Co.’s 1880s production line:
Vertical Boiler & Engine Setup: A vertical, upright boiler mounted on a heavy-duty wooden-spoke four-wheel transport chassis.
Monoblock Single Frame: Cylinder, crosshead guides, and main bearings were cast as a single rigid unit to eliminate frame flexing under heavy belt tension.
Threshing & Stationary Power: In 1880s Western Canada, 10 HP portable engines were widely used to belt-drive stationary thresher setups, wood sawmills, and grain processing equipment before self-propelled traction engines fully dominated the prairies.
Thank you to Reynolds Museum for bringing their historic 1885 engine to Alberta’s Pioneer Steam Power Festival on August 7,8,9.
